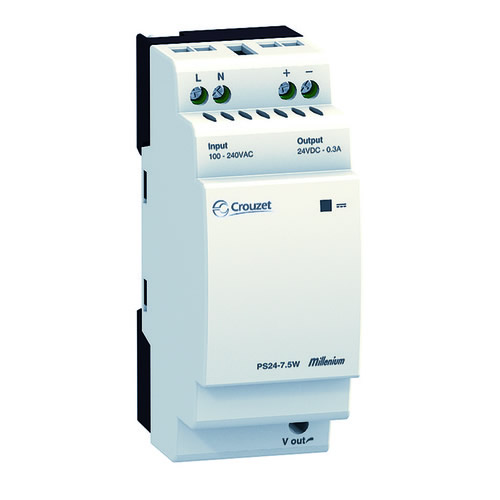

Millenium 3 Modular power supply 60W- 24VDC 88950302

88950302M3 PS24-Modular power supply  60W- 24VDC
88950303M3 PS24-Modular power supply 7,5W 24VDC
88950304M3 PS24-Modular power supply  24 VDC – 15 W
88950305M3 PS24-Modular power supply  5 VDC – 20 W
88950306M3 PS24-Modular power supply 12 VDC – 24 W
88950307M3 PS24-Modular power supply  24 VDC – 30 W

Descripción

MODULAR POWER SUPPLY PS24-60W 24VDC

Media & Documents


Product Datasheet
Product key features, technical specs, technical schemas and more.

Media Kit
High Resolution pictures, Arguments and more.

Technical Specifications


Voltage type of supply voltageAC
1st secondary output voltage24
Max. output current 12,5
Short-circuit-prooftrue
Rated supply voltage at AC 50 Hz100 – 240
Rated supply voltage at AC 60 Hz100 – 240
Output voltage stabilizedtrue
Power output60
Stabilizedtrue
Type of electric connectionScrew connection
Wall mounting possibletrue
Modular versiontrue
Direct mounting possibletrue
Width72
Height90
Depth56
Suitable for safety functionsfalse
Degree of protection (IP)IP20

Logic controller > Millenium evo
MilleniumEVO, Smart relay, 24 I/O, 24 Vdc, Blind88975001
MilleniumEVO, Smart relay, 24 I/O, 24 Vdc, Blind, Ethernet88975011
MilleniumEVO, Smart relay, 24 I/O, 24 Vdc, Display88975101
MilleniumEVO, Smart relay, 24 I/O, 24 Vdc, Display, Ethernet88975111
