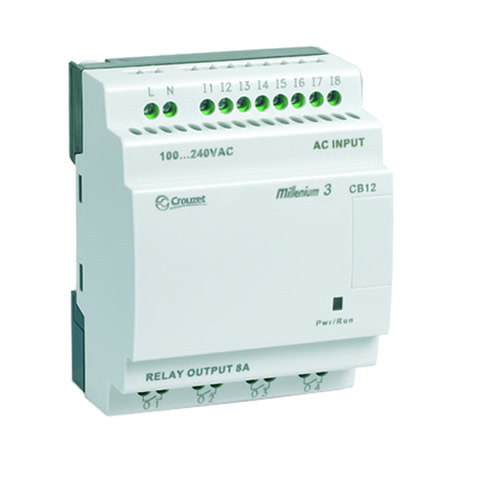

Millenium 3 Smart CB12- 8I/4O
| 88974021 | M3 CB12- 8I/4O R 24VDC |
| 88974023 | M3 CB12- 8I/4O R 230VAC |
| 88974024 | M3 CB12- 8I/4O R 24VAC |
| 88974026 | M3 CB12- 8I/4O S 12VDC |
Descripción
- Product Datasheet
- Product key features, technical specs, technical schemas and more.
- More documents
- User Guide, Recycling Notice, 3D files, Approvals and more.
- Media Kit
- High Resolution pictures, Arguments and more.
Technical Specifications
| Supply voltage DC | 24 |
|---|
| Voltage type of supply voltage | DC |
|---|
| Switching current | 8 |
|---|
| Number of analogue inputs | 4 |
|---|
| Number of analogue outputs | 0 |
|---|
| Number of digital inputs | 8 |
|---|
| Number of digital outputs | 4 |
|---|
| With relay output | true |
|---|
| Number of HW-interfaces RS-232 | 1 |
|---|
| Number of HW-interfaces USB | 1 |
|---|
| Redundancy | false |
|---|
| With display | false |
|---|
| Basic device | true |
|---|
| With timer | true |
|---|
| Rail mounting possible | true |
|---|
| Suitable for safety functions | false |
|---|
| Width | 71 |
|---|
| Height | 90 |
|---|
| Depth | 58 |
|---|
