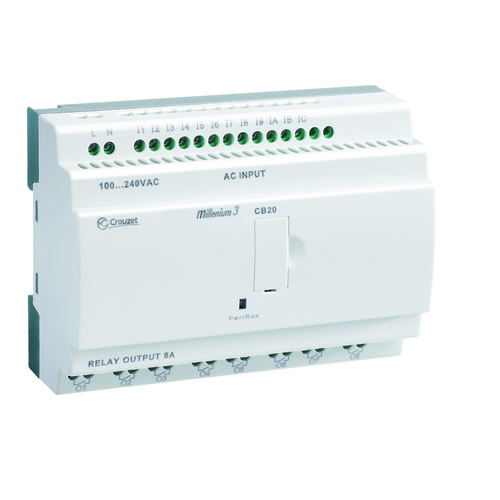

Millenium 3 Smart CB20- 12I/8O R 88974031

88974031M3 CB20- 12I/8O R 24VDC
88974033M3 CB20- 12I/8O R 230VAC
88974034M3 CB20- 12I/8O R 24VAC

Descripción

Media & Documents


Product Datasheet
Product key features, technical specs, technical schemas and more.

More documents
User Guide, Recycling Notice, 3D files, Approvals and more.

Media Kit
High Resolution pictures, Arguments and more.

Technical Specifications


Supply voltage DC24
Voltage type of supply voltageDC
Switching current8
Number of analogue inputs6
Number of analogue outputs0
Number of digital inputs12
Number of digital outputs8
With relay outputtrue
Number of HW-interfaces RS-2321
Number of HW-interfaces USB1
Redundancyfalse
With displayfalse
Degree of protection (IP)IP40
Basic devicetrue
Expandablefalse
With timertrue
Rail mounting possibletrue
Wall mounting/direct mountingtrue
Front build in possibletrue
Suitable for safety functionsfalse
Width124
Height90
Depth58
